Standard blade with CVD Needle

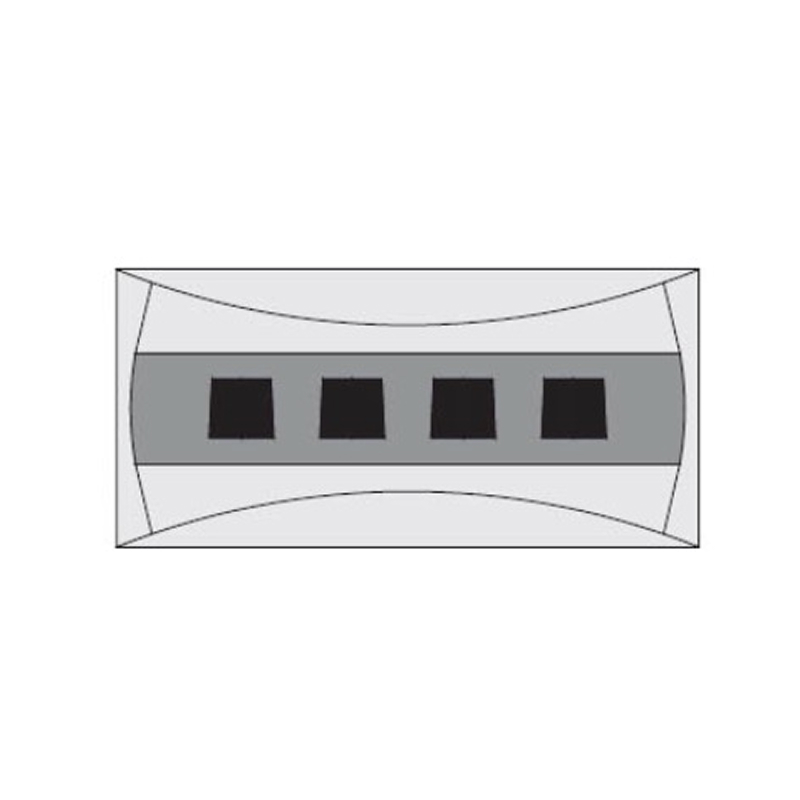

Because the CVD diamond material is centred, this blade is the first choice for high precision straight dressing of alumina, special fused alumina and sintered alumina grinding wheels. A highly durable tool with straight CVD needle inserts.

Selecting the right blade tool

We have made it easy for you select the most suitable blade dresser :

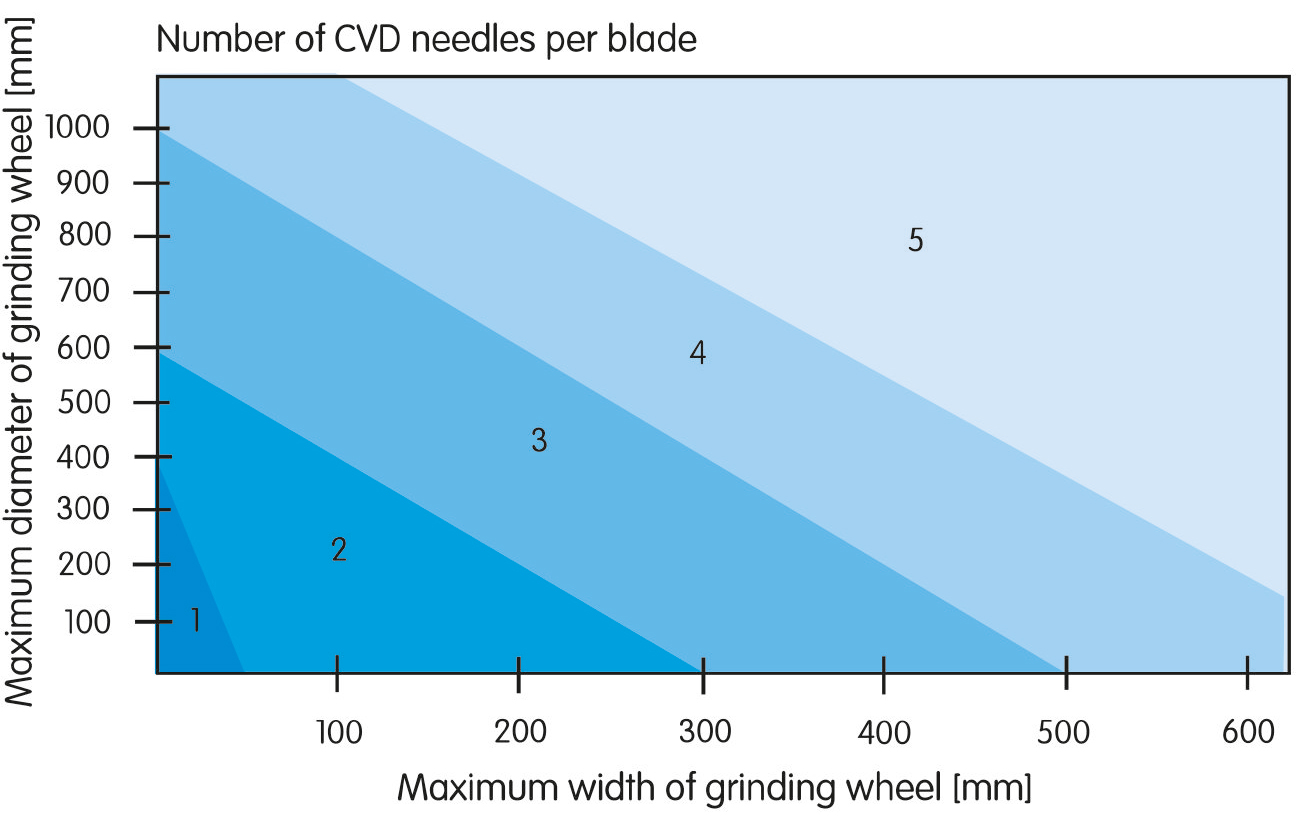

♦ Simply choose the appropriate blade size from the diagram according to the width and diameter of your grinding wheel.

♦ Then choose the best blade tool from the table below.

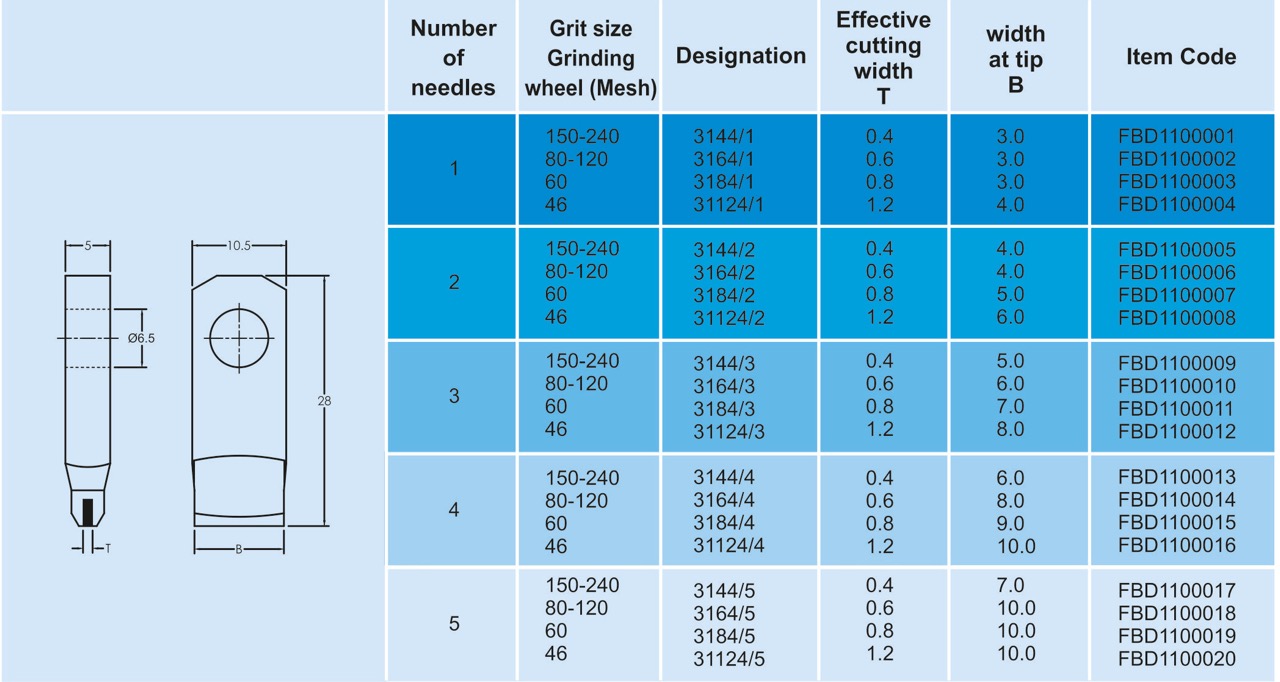

Standard range (centred version)

All dimensions in mm

Standard OC Blade with CVD needle

This blade with its off-centred CVD material is a first choice for angular plunge dressing of all alumina, special fused alumina and sintered alumina grinding wheels.
A highly durable tool with CVD needles inserted diagonally.

Selecting the right blade tool

We have made it easy for you select the most suitable blade dresser :

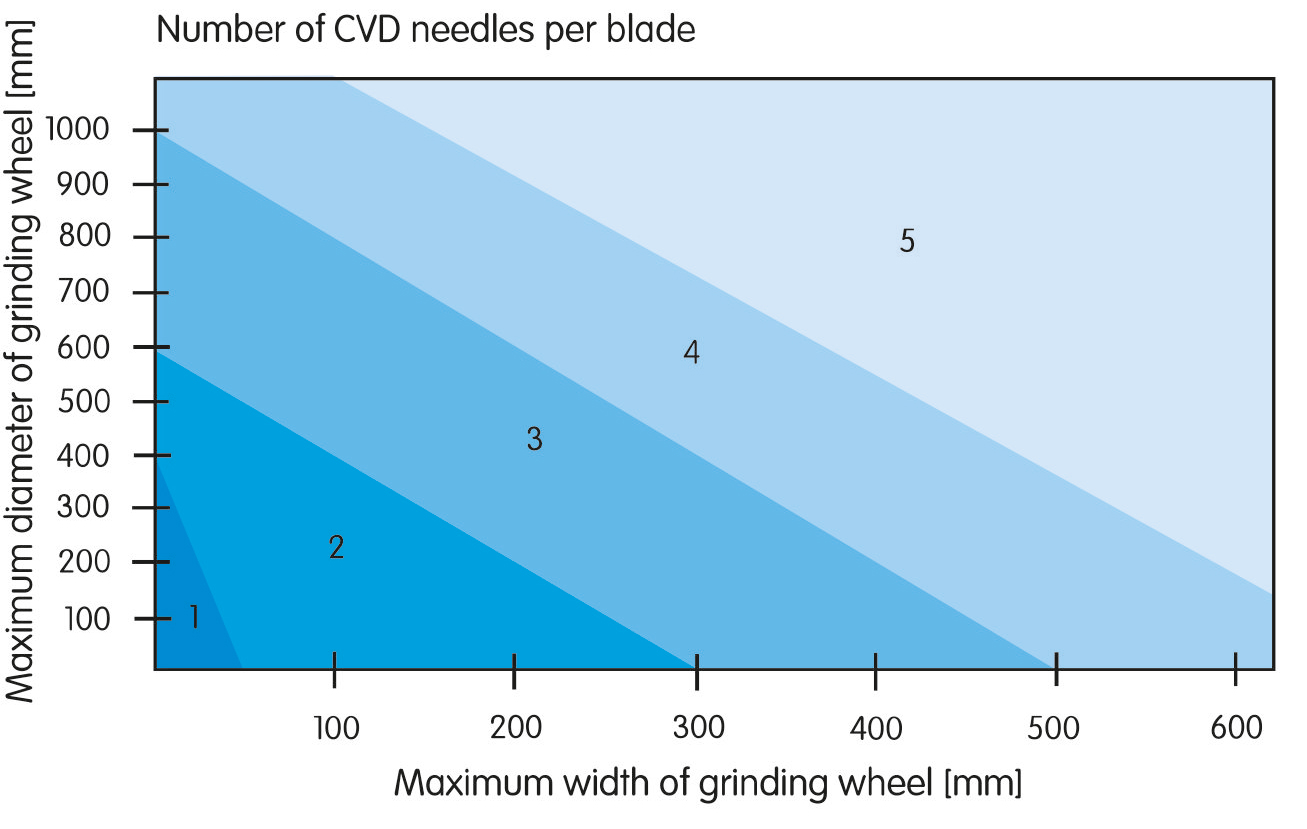

♦ Simply choose the appropriate blade size from the diagram according to the width and diameter of your grinding wheel.

♦ Then choose the best blade tool from the table below.

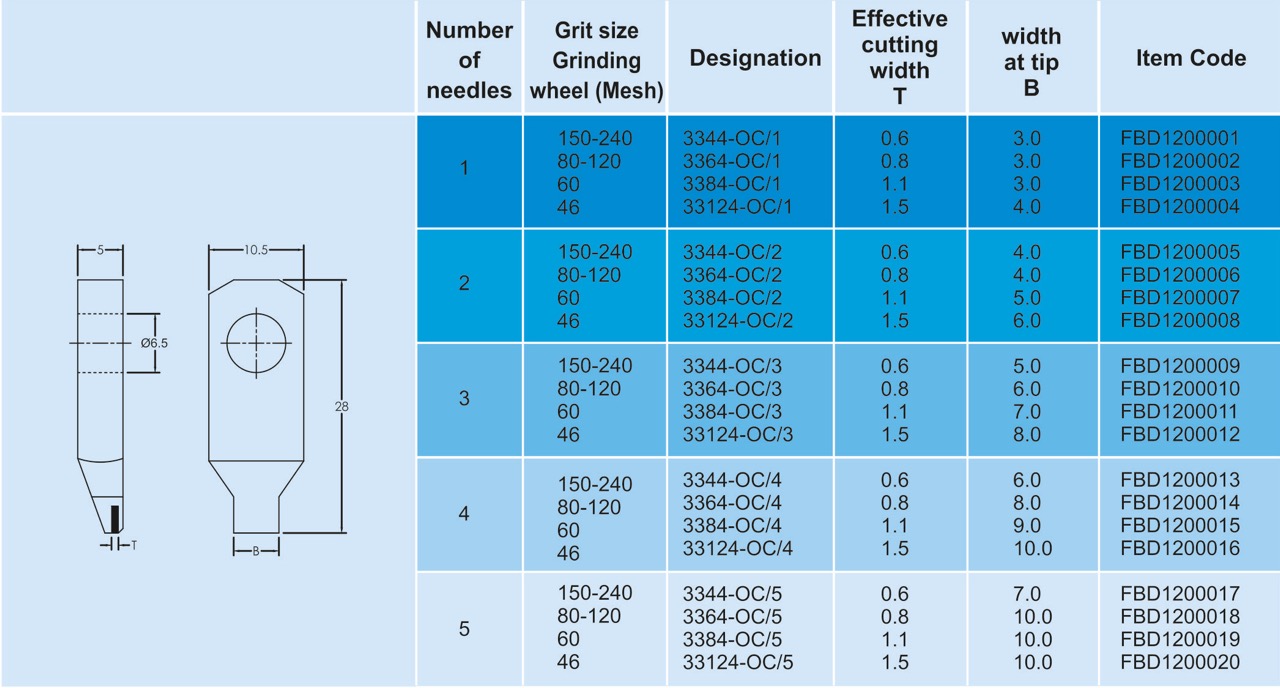

Standard range (off-centred version, oc)

All dimensions in mm

Angle and Radius Specifications

Blade type dressers MCD & CVD are available with the diamond radius and angle preground.

The advantages of pre-polishing are:

Reduction of the work needed to change the tool as it takes less time to match the dresser to the profile of the grinding wheel
Adherence to profile directly after tooling change, even for high precision profiles with a radius of only 0.125 mm.

Sr. No.	Angle (a)	Radius (r) [mm]
1	88°	0.10
2	88°	0.125
3	88°	0.15
4	88°	0.20
5	88°	0.25
6	88°	0.30

All dimensions are in millimeters.

Standard blade with CVD Needle

Selecting the right blade tool

Standard range (centred version)

Standard OC Blade with CVD needle

Selecting the right blade tool

Standard range (off-centred version, oc)

Angle and Radius Specifications
