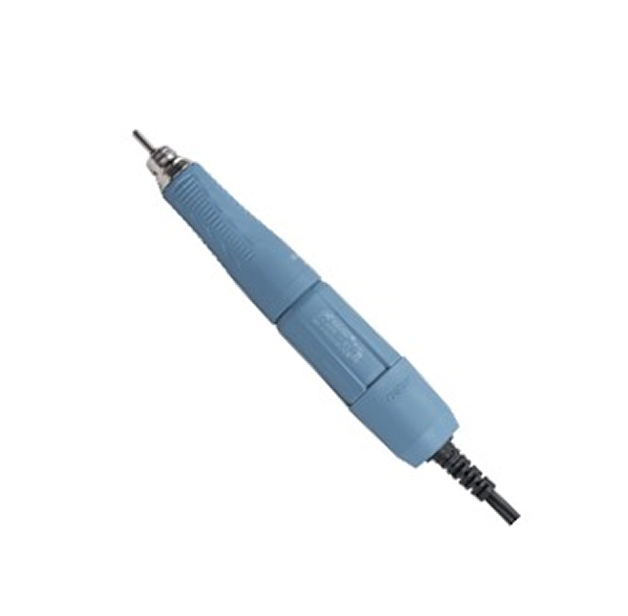

Rotary Handpiece – C-HPM-B1

Micro-motor driven high speed rotary handpiece with carbon brush motor

For use together with power unit DPU-3 or twin power unit TPU-20.
Features a quick change design for both the collet and the tool.
Supplied with 3.0 mm collet (optional 2.35 mm collet available).

Technical Data

• Speed: max. 38,000 rpm

• Consumed power: 100 W

• Torque: 4.0 N·cm

• Weight: 285 g

• Dimensions: L159 × Ø29.5 mm

• Noise: < 70 dB(A) at 38,000 rpm

• Vibrations: < 2.5 m/s²

Item number: C-HPM-B1
