PCBN boring cutters for jig-boring lathes (through holes)

Recommended applications:

Boring of workpieces of steel (hardness HRC 40…70), cast iron, tungsten carbide.

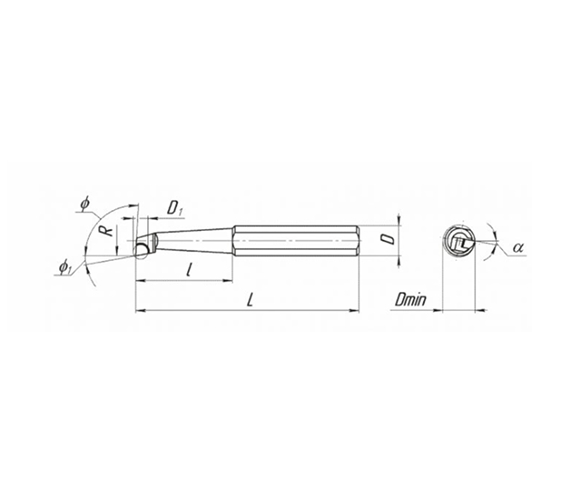

Note: * when the diameter is increased, the length approaches  I.

A clearance angle on the lathe of a=10°…12° is recommended.

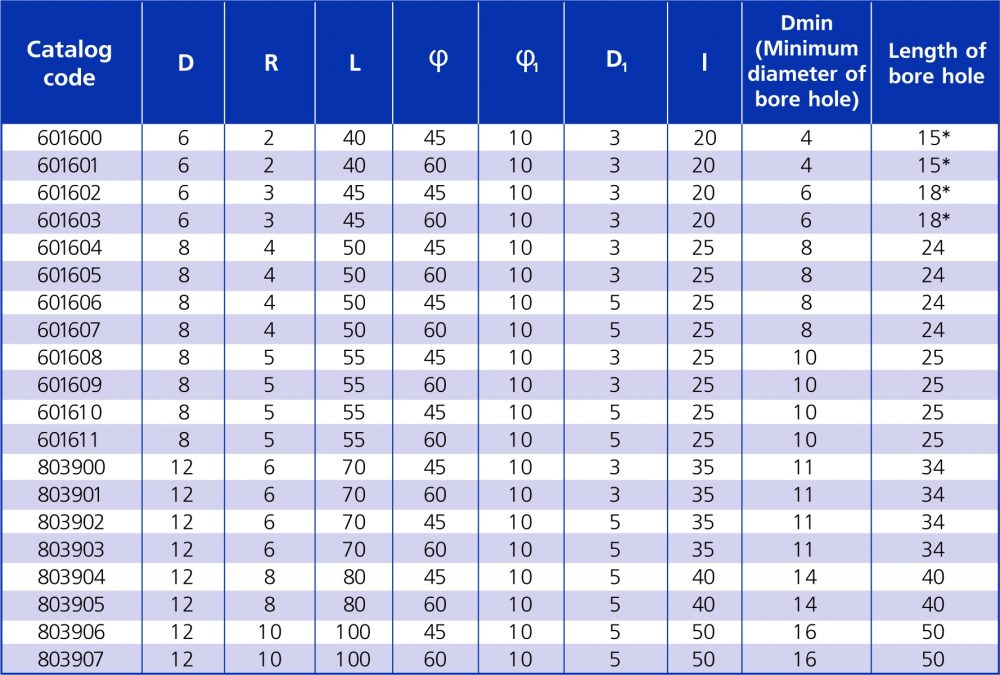

Example of an order of a boring cutter (code 601600) with measurements 6-2-40-45-10: 601600 Boring cutter 6-2-40-45-10
