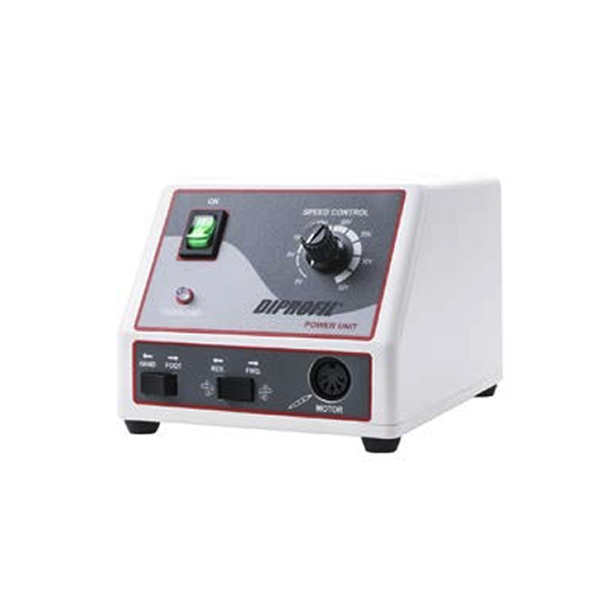

Diprofil Power Unit – DPU-3

This compact and ergonomic Power Unit is designed for use together with dedicated rotary handpieces and micro-motor driven reciprocating Diprofil polishing/filing machines with carbon brush motors. It has high torque and electrical feedback circuitry. Other features include continuously variable speed, forward / reverse switch and automatic overload protection. Supplied with foot control type DPU-3-FC for optional speed adjustment.

Specifications

Parameter Details
Input AC 110/220 V at 50/60 Hz
Output DC 0 – 32 V, 1.2 A max.
Power 100 W
Weight (Power Unit) 1.7 kg
Dimensions (Power Unit) W115 x D147 x H96 mm
Weight (Foot Control) 585 g
Item Number DPU-3
