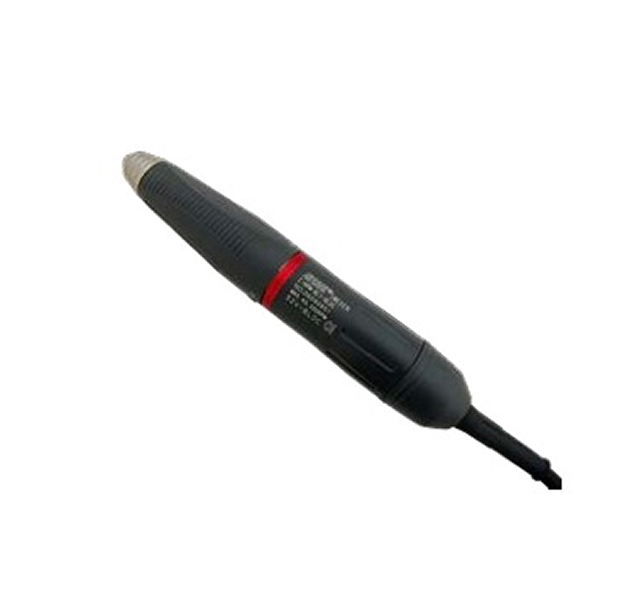

Brushless Rotary Handpiece – C-HPM-BL1

Micro-motor driven rotary handpiece with brushless motor

For use together with twin power unit TPU-20.
Features a quick change design for both the collet and the tool.
Supplied with 3.0 mm collet (optional 2.35 mm collet available).

Technical Data

• Speed: max. 40,000 rpm

• Consumed power: max. 230 W

• Torque: 8.5 N·cm

• Weight: 350 g

• Dimensions: L159 × Ø27 mm

• Noise: < 70 dB(A) at 40,000 rpm

• Vibrations: < 2.5 m/s²

Item number: C-HPM-BL1
