1V1 30º AND 14V1 30º WITH HBD04 AND HBD05 BONDS

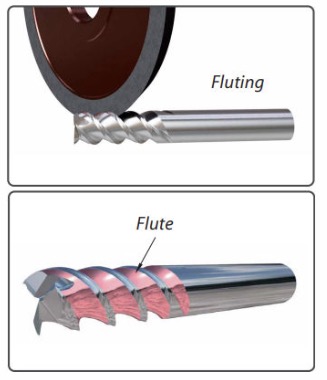

HBD04 1V1 30º and 14V1 30º grinding wheels are a solution for fluting operations in the diameter range up to 6 mm with grit M30.

HBD05 1V1 30º and 14V1 30º grinding wheels are developed for flute surface and cutting edge polishing in cutting tool production branch.

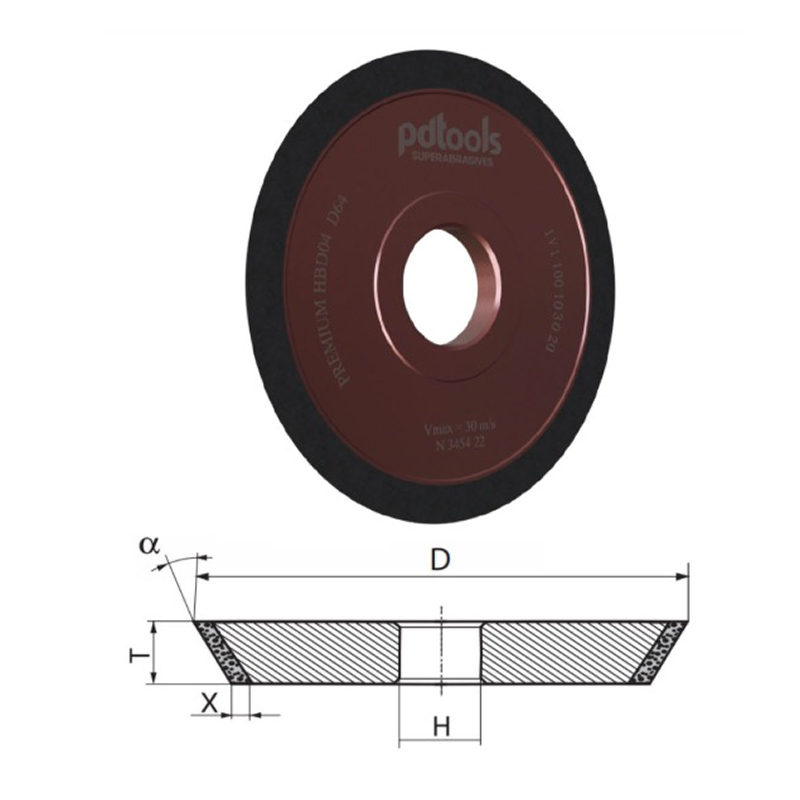

1V1 / 14V1 Wheel Dimensions

Code Dimensions
9-9000 1V1 75×5×10×30×20
9-9001 1V1 75×5×10×30×31.75
9-9002 1V1 75×5×10×30×32
0-7346 1V1 75×8×5×30×20
3F2919 1V1 100×10×7×30×20
9D3207 1V1 100×12×6×30×20
9S3213 1V1 125×12×6×30×20
9-9006 14V1 100×10×5×10×30×20
9-9007 14V1 100×10×5×10×30×31.75
9-9008 14V1 100×10×5×10×30×32
