1V1 10º; 15º; 20º WITH HBD04 AND HBD05 BONDS

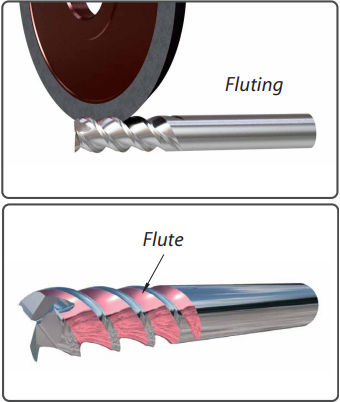

HBD04 1V1 10º; 15º; 20º grinding wheels are a solution for fluting operations in the diameter range up to 6 mm with grit M30 RECOMMENDED FLUTING PARAMETERS FOR HBD04 BOND Coolant – oil, wheel speed 16-22 m/s. HBD05 1V1 10º; 15º; 20º grinding wheels are developed for flute surface and cutting edge polishing in cutting tool production branch.

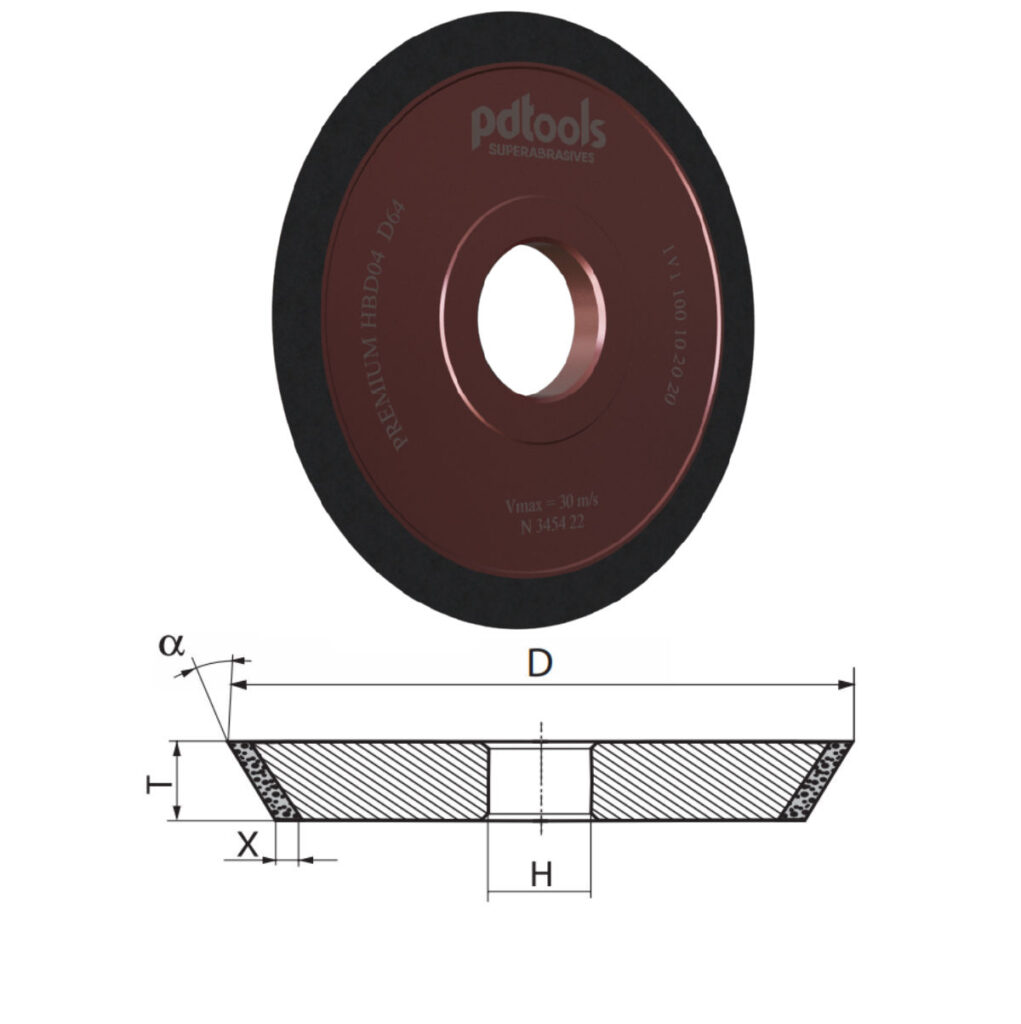

Code Dimensions
0L7350 1V1 74x8x6x15x20
0-7350 1V1 75x8x7x20x20
0-7352 1V1 100x6x7x20x20
3R2919 1V1 100x10x7x20x31.75
9C9991 1V1 100x10x10x20x20
9D9991 1V1 100x10x10x20x32
9D3206 1V1 100x12x6x15x20
9U3206 1V1 100x12x6x20x20
9X3206 1V1 125x12x6x15x20
953211 1V1 125x12x6x20x20
