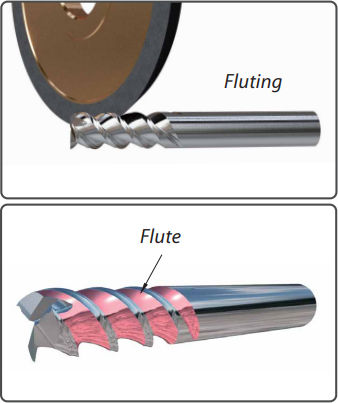

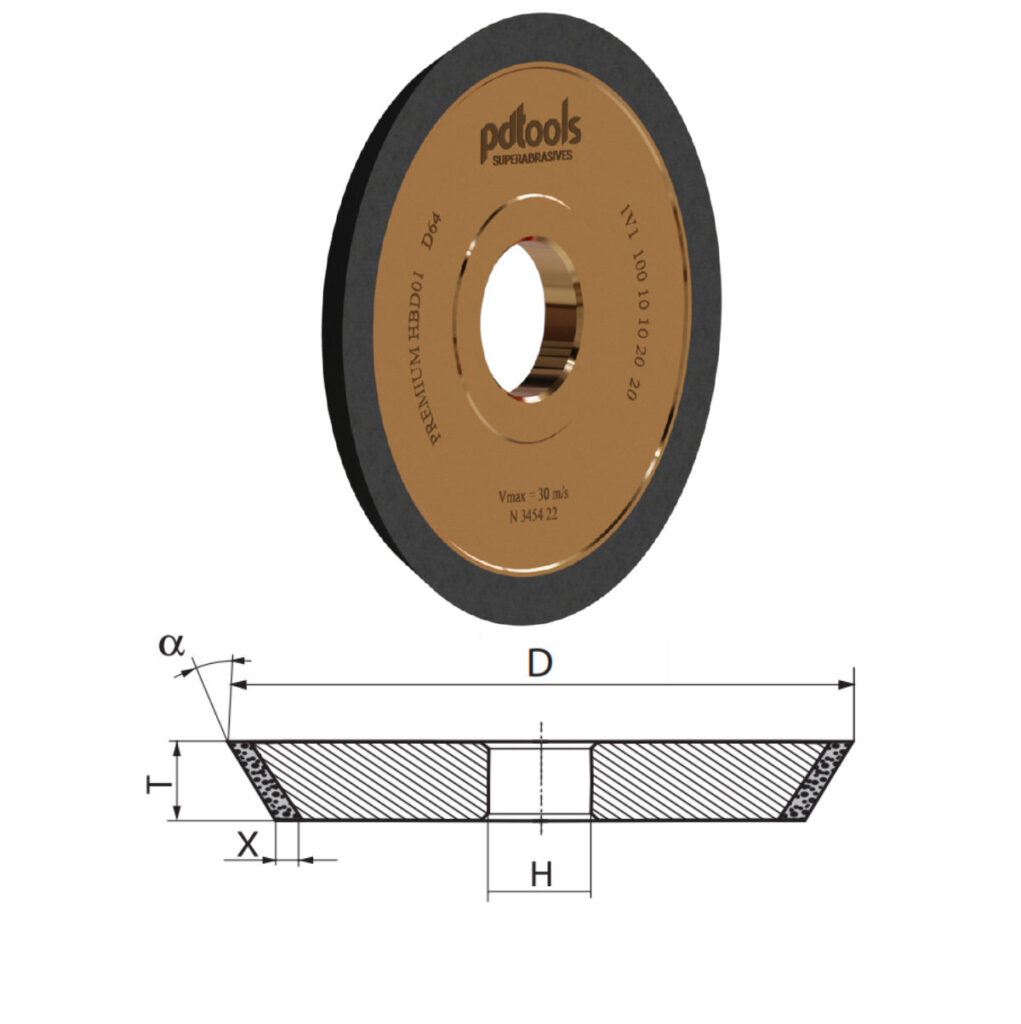

HBD01/SPD01 1V1 10º; 15º; 20º grinding wheels are a solution for fluting operations in the diameter range 4…12 mm with D46 and D64 with diameters bigger than 6 mm.

| Code | Dimensions |
|---|---|
| FM2-02 | 1V1 100x10x10x15x20 |
| FM2-31 | 1V1 100x10x10x15x31.75 |
| FM2-03 | 1V1 100x10x10x15x32 |
| FM2-04 | 1V1 100x10x10x20x20 |
| FM2-32 | 1V1 100x10x10x20x31.75 |
| FM2-05 | 1V1 100x10x10x20x32 |
| FM2-60 | 1V1 100x12x10x10x20 |
| FM2-61 | 1V1 100x12x10x10x31.75 |
| FM2-62 | 1V1 100x12x10x10x32 |
| FM2-63 | 1V1 100x12x10x15x20 |
| FM2-64 | 1V1 100x12x10x15x31.75 |
| FM2-65 | 1V1 100x12x10x15x32 |
| FM2-66 | 1V1 100x12x10x20x20 |
| FM2-67 | 1V1 100x12x10x20x31.75 |
| FM2-68 | 1V1 100x12x10x20x32 |
| FM2105 | 1V1 100x14x10x10x20 |
| FM2106 | 1V1 100x14x10x10x31.75 |
| FM2107 | 1V1 100x14x10x10x32 |
| FM2108 | 1V1 100x14x10x15x20 |
| FM2109 | 1V1 100x14x10x15x31.75 |
| FM2110 | 1V1 100x14x10x15x32 |
| FM2111 | 1V1 100x14x10x20x20 |
| FM2112 | 1V1 100x14x10x20x31.75 |
| FM2113 | 1V1 100x14x10x20x32 |
| FM2-12 | 1V1 125x10x10x15x20 |
| FM2-36 | 1V1 125x10x10x15x31.75 |
| FM2-13 | 1V1 125x10x10x15x32 |
| FM2-75 | 1V1 125x12x10x10x20 |
| FM2-76 | 1V1 125x12x10x10x31.75 |
| FM2-77 | 1V1 125x12x10x10x32 |
| FM2-78 | 1V1 125x12x10x15x20 |
| FM2-79 | 1V1 125x12x10x15x31.75 |
| FM2-80 | 1V1 125x12x10x15x32 |
| FM2-81 | 1V1 125x12x10x20x20 |
| FM2-82 | 1V1 125x12x10x20x31.75 |
| FM2-83 | 1V1 125x12x10x20x32 |
| FM2120 | 1V1 125x14x10x10x20 |
| FM2121 | 1V1 125x14x10x10x31.75 |
| FM2122 | 1V1 125x14x10x10x32 |
| FM2123 | 1V1 125x14x10x15x20 |
| FM2124 | 1V1 100x14x10x15x31.75 |
| FM2125 | 1V1 125x14x10x15x32 |
| FM2126 | 1V1 125x14x10x20x20 |
| FM2127 | 1V1 125x14x10x20x31.75 |
| FM2128 | 1V1 125x14x10x20x32 |
| FM2180 | 1V1 150x16x10x10x20 |
| FM2181 | 1V1 150x16x10x10x31.75 |
| FM2182 | 1V1 150x16x10x10x32 |
| FM2183 | 1V1 150x16x10x15x20 |
| FM2184 | 1V1 150x16x10x15x31.75 |
| FM2185 | 1V1 150x16x10x15x32 |
| FM2186 | 1V1 150x16x10x20x20 |
| FM2187 | 1V1 150x16x10x20x31.75 |
| FM2188 | 1V1 150x16x10x20x32 |
