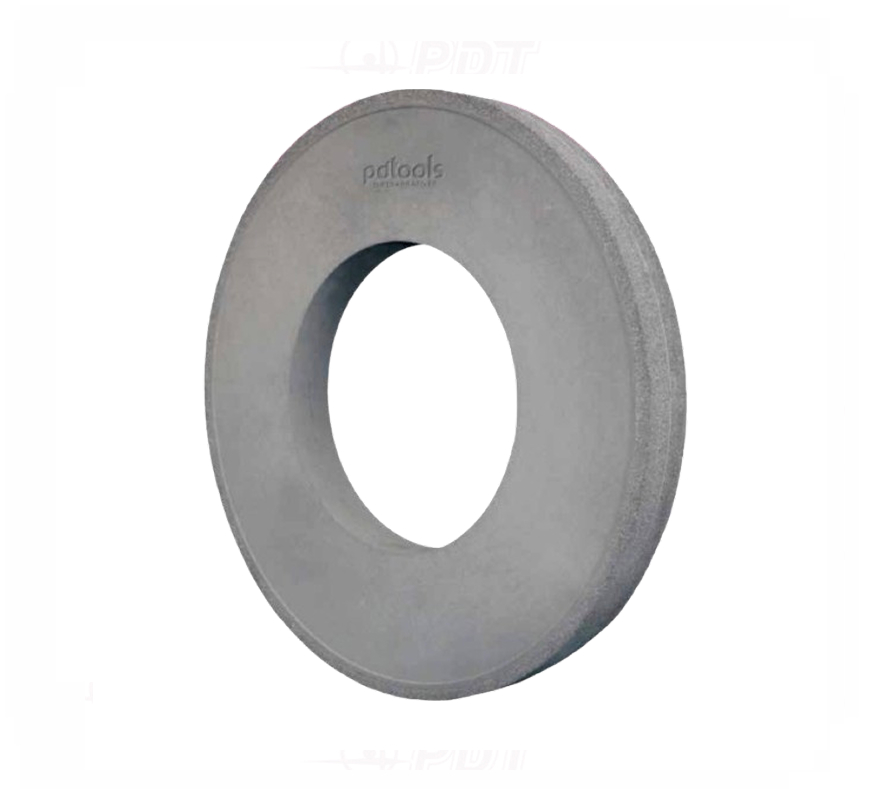

1A1 – STRAIGHT GRINDING WHEELS

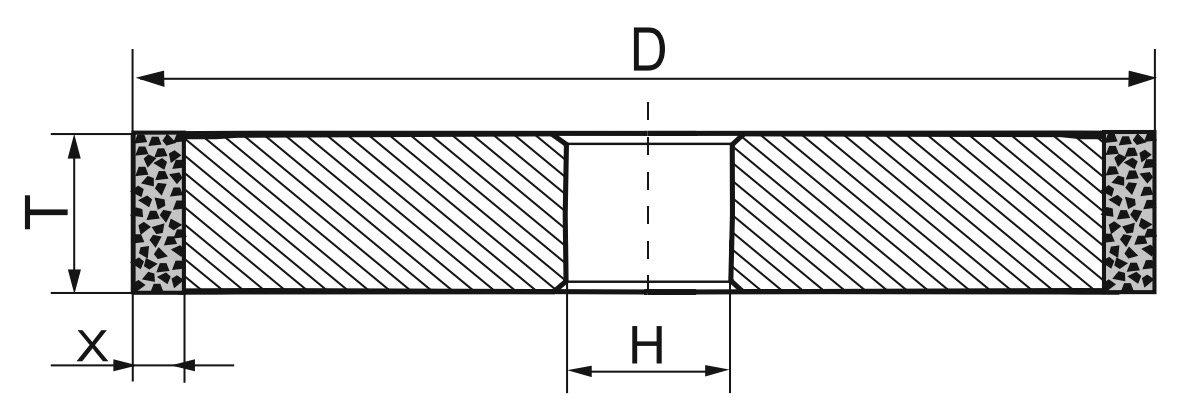

Size code: 1A1 DTX*H

Applications:

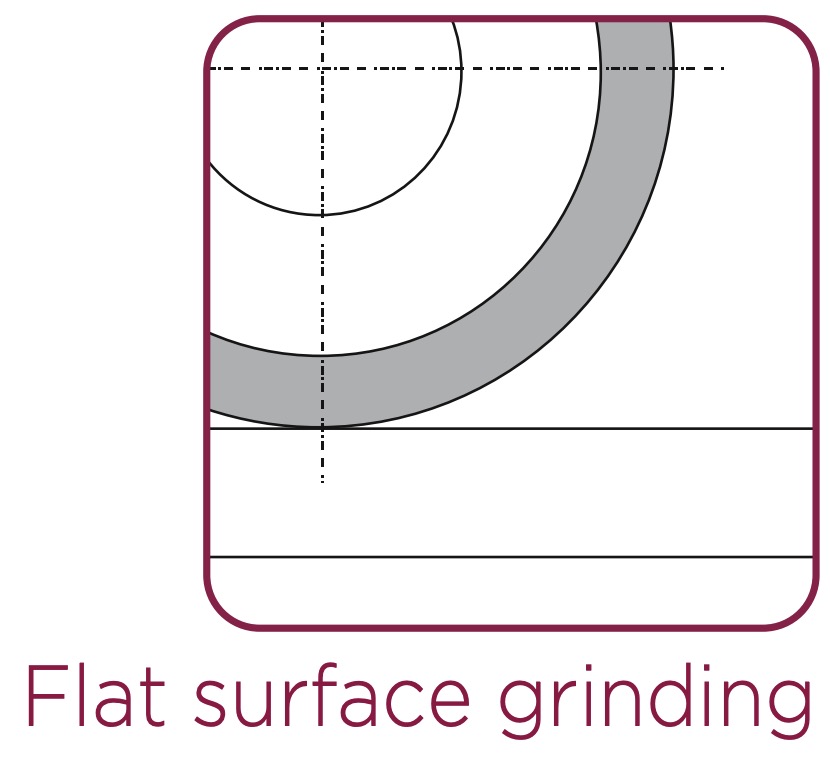

Grinding wheels are used for surface, cylindrical, internal (ID) and centerless grinding of forged, cemented, bearing, heat-resistant, tool, alloyed, and high-speed steels.

Available Dimensions

Catalog Number	D (mm)	T (mm)	X (mm)	H (mm)
K-0085	125	10	5	32
K-0124	20	30	5	10
K-0125	30	30	5	10
K-0126	32	20	5	10
K-0123	30	30	3	10
K-0127	35	32	5	10
K-0129	40	20	5	10
K-0130	40	32	5	20
K-0119	50	40	5	20
KD0119	60	50	5	32
K-0118	60	40	5	20
K-0117	60	32	5	20
K-0116	60	20	5	32
KB0085	125	4	5	32
KB0148	100	20	5	32
K-0120	70	20	5	20
K-0068	125	20	5	32
KG0055	150	20	5	32
K-0055	150	10	5	32
KD0004	200	8	5	32
K-0004	200	10	5	32
KB0036	200	10	10	32
K-0002	200	20	5	32
KL0036	200	20	10	32
KJ0011	250	20	10	76
KL0011	250	25	10	76
KD0011	250	16	10	76
K-0011	250	20	5	76
KB0003	300	13	5	127
K-0318	300	20	10	127
K-0320	300	40	10	127
K-0013	350	20	5	127
K-0319	350	20	10	127
K-0321	350	40	10	127
K-0199	400	20	10	203
K-0198	400	20	10	127
K-0200	400	40	10	203
K-0203	450	40	5	127
K-0205	500	50	6	203
