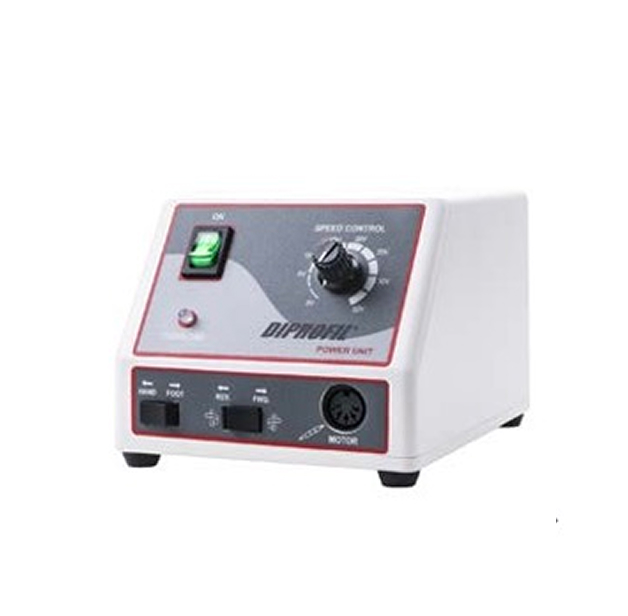

Diprofil Power Unit – DPU-3

DPU-3 – Compact and Ergonomic Power Unit

This compact and ergonomic Power Unit is designed for use together with dedicated rotary handpieces and micro-motor driven reciprocating Diprofil polishing/filing machines with carbon brush motors.
It features high torque and electrical feedback circuitry.
Other features include:

• Continuously variable speed

• Forward/reverse switch

• Automatic overload protection

Supplied with foot control. Compatible with foot control type DPU-3-FC for optional speed adjustment.

Technical Data

• Input: AC 110/220 V at 50/60 Hz

• Output: DC 0 – 32 V, 1.2 A

• Power: max. 100 W

• Weight (Power Unit): 1.7 kg

• Dimensions (Power Unit): W115 × D147 × H96 mm

• Weight (Foot Control): 585 g

Item number: DPU-3
