Diamond Honing Stone

Due to growing ecological requirements, there is growing demand of bores that can be manufactured in high quantities and with a high precision in terms of surface quality and bore geometry.

Faced with today’s ecological and economic changes, honing with Diamond or CBN is a must in any modern manufacturing environment.

In Modern manufacturing, Diamond & CBN honing stones represent the most cost effective and best technological soluiton.The extreme hardness of Diamond and CBN guarantees long lifetime cycles for the honing stones, a basic requirements for production facility with a high degree of automation and multi shift operation.

On account of the particular hardness of abrasive material, honing stones of Diamond and CBN stones have an excellent accuracy of form. This has an impact on the process reliability and the precision of the honed bore. The Honing of very small bores can often only be carried out by Diamond and CBN.

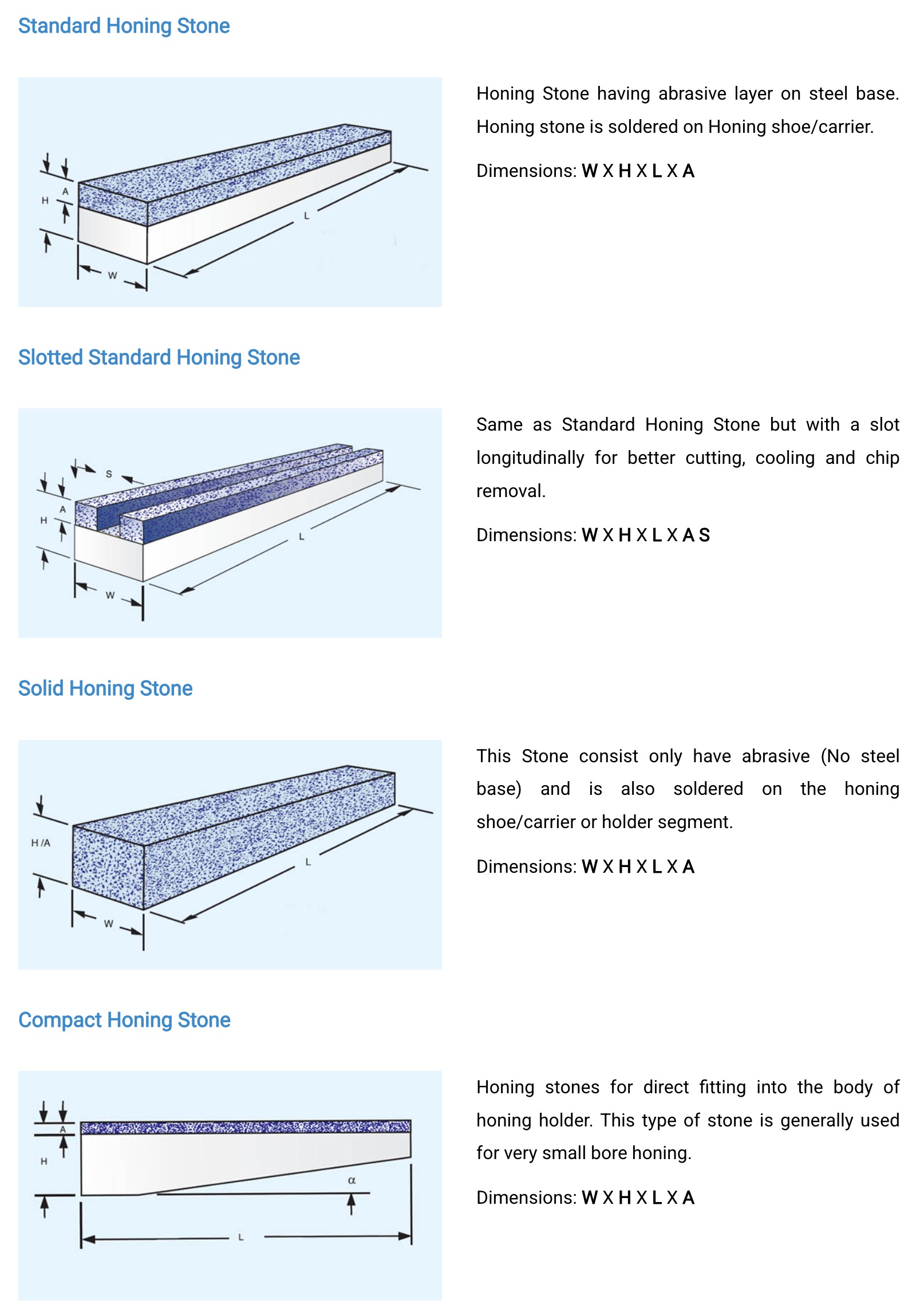

The Dimension of Honing stone depends on the design of the honing holder / mandler. In particular, the height of the abrasive layer is defined by possible infeed path of the holder. For the sake of clarity, some types of Honing Stones are given as below:

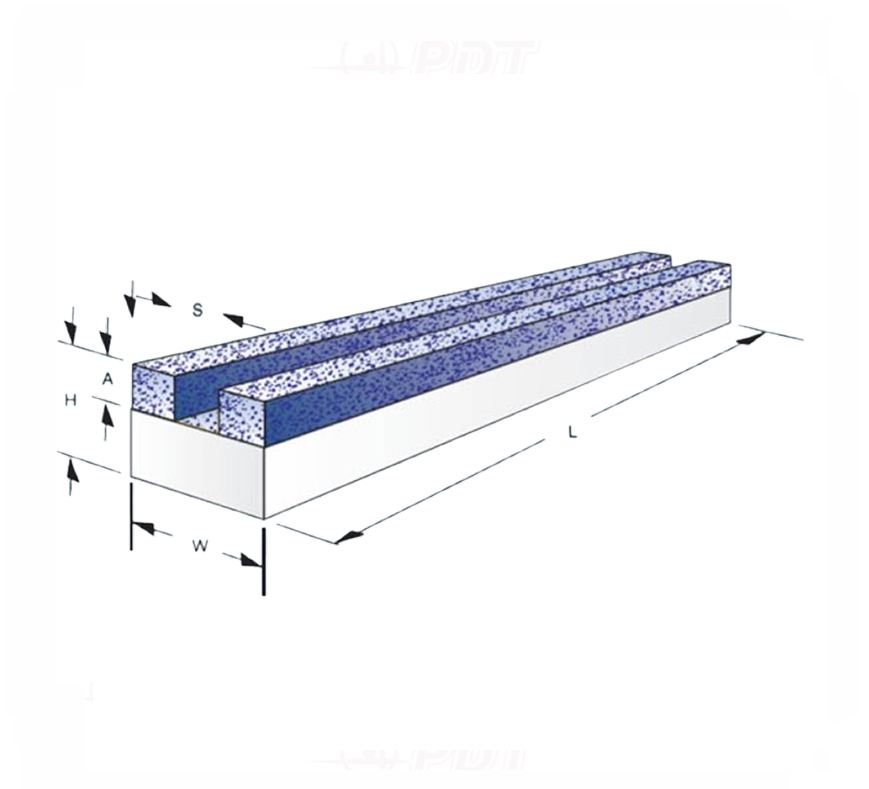

Drawing of the Stone required manufacturing.

= Width (mm)
= Height (mm)
L= Length (mm)
= Abrasive Height (mm)
= Slot Width (mm)
