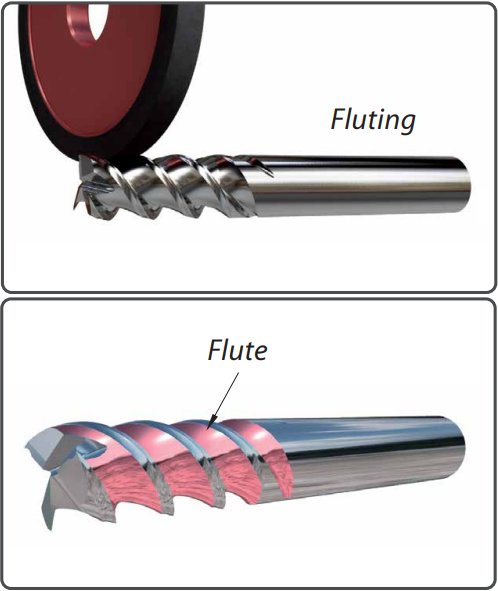

HBD04 1A1 and 14А1 grinding wheels are a solution for fluting operations in the diameter range up to 6 mm with grit M30. RECOMMENDED FLUTING PARAMETERS FOR HBD04 BOND Coolant – oil, wheel speed 16-22 m/s. HBD05 1A1 and 14А1 grinding wheels are the balanced supplement for flute surface and cutting edge polishing with grit size M10 in cutting tool production industry.

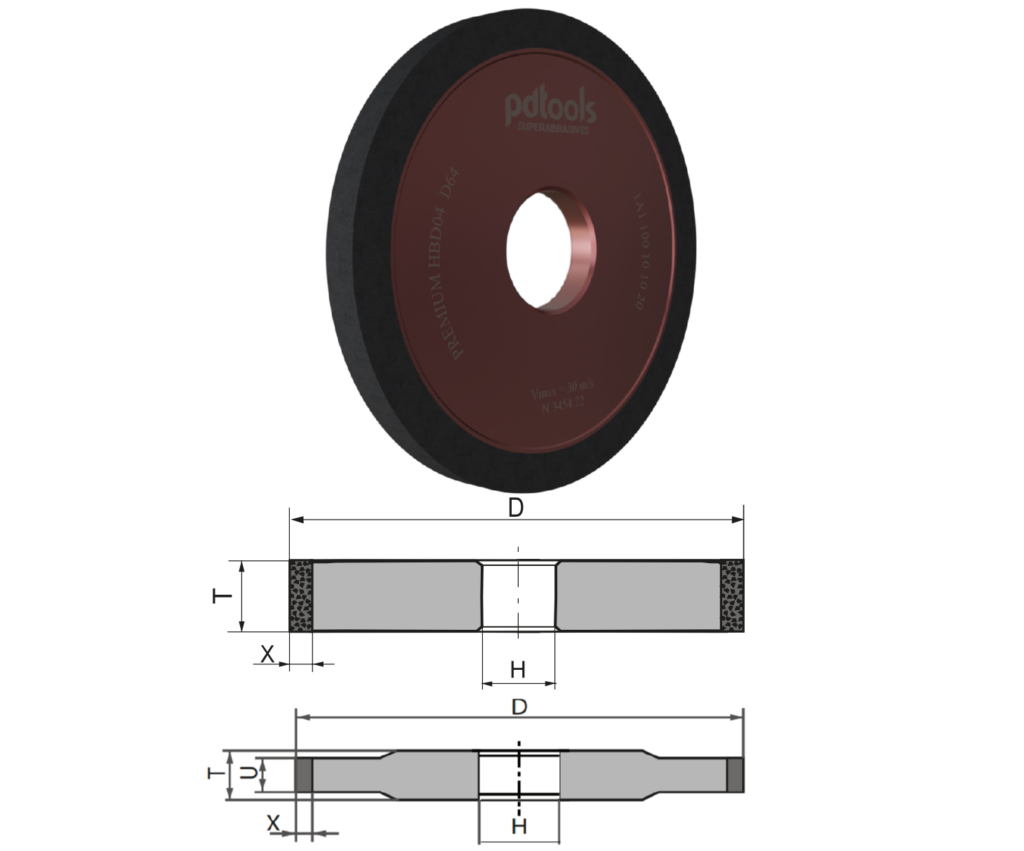

| Code | Dimensions |
|---|---|
| 9-9012 | 1A1 75×5×10×20 |
| 9-9013 | 1A1 75×5×10×31.75 |
| 9-9014 | 1A1 75×5×10×32 |
| 9-6941 | 1A1 75×6×5×10 |
| 9K6941 | 1A1 75×6×5×20 |
| 0-0048 | 1A1 80×6×3×20 |
| 0-0054 | 1A1 80×6×5×20 |
| 0-0050 | 1A1 80×10×3×20 |
| 0-0056 | 1A1 80×10×5×20 |
| 0-0253 | 1A1 80×10×10×20 |
| 0-0063 | 1A1 100×6×3×20 |
| 0-0069 | 1A1 100×6×5×20 |
| 0-0064 | 1A1 100×5×3×20 |
| 0-0065 | 1A1 100×10×3×20 |
| 0-0071 | 1A1 100×10×5×20 |
| 3-2919 | 1A1 100×10×7×20 |
| 0-1004 | 1A1 100×10×10×20 |
| 0-0072 | 1A1 100×12×5×20 |
| 0M0079 | 1A1 125×6×3×20 |
| 0-0079 | 1A1 125×6×3×32 |
| 0-0080 | 1A1 125×10×3×32 |
| 9-9015 | 14A1 100×10×5×10×20 |
| 9-9016 | 14A1 100×10×5×10×31.75 |
| 9-9017 | 14A1 100×10×5×10×32 |
